Here's one of our most difficult build to date.

We mated a 1960 Vespa 400 Microcar with a Harley Davidson 1200cc engine.

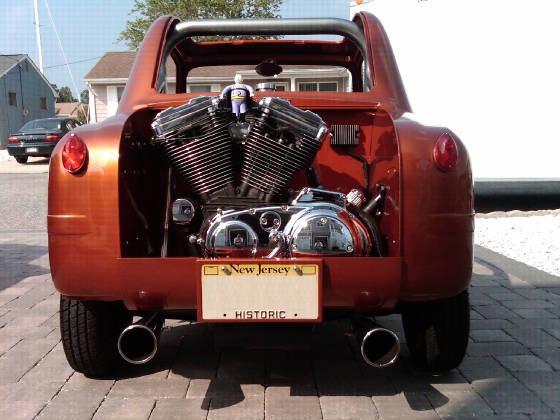

Oh, and we mounted it sideways in the rear!

vespa/1vespa.jpg

vespa/8vespa.jpg

vespa/8vespa.jpg

vespa/8vespa.jpg

vespa/8vespa.jpg

vespa/8vespa.jpg

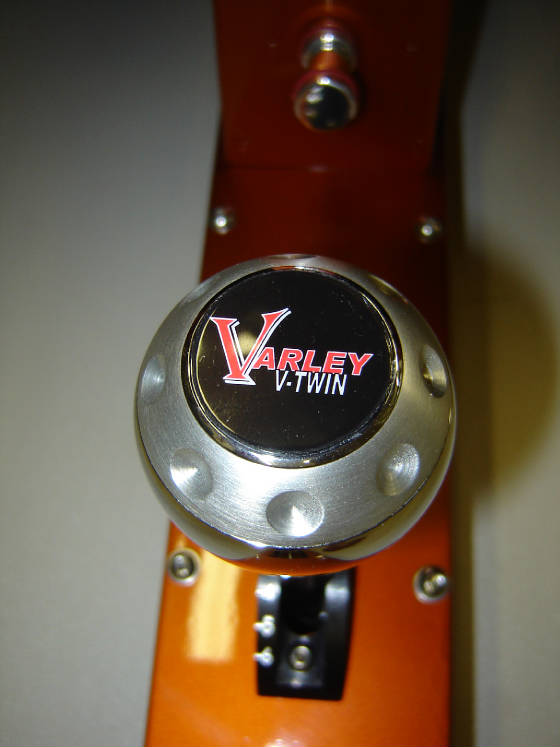

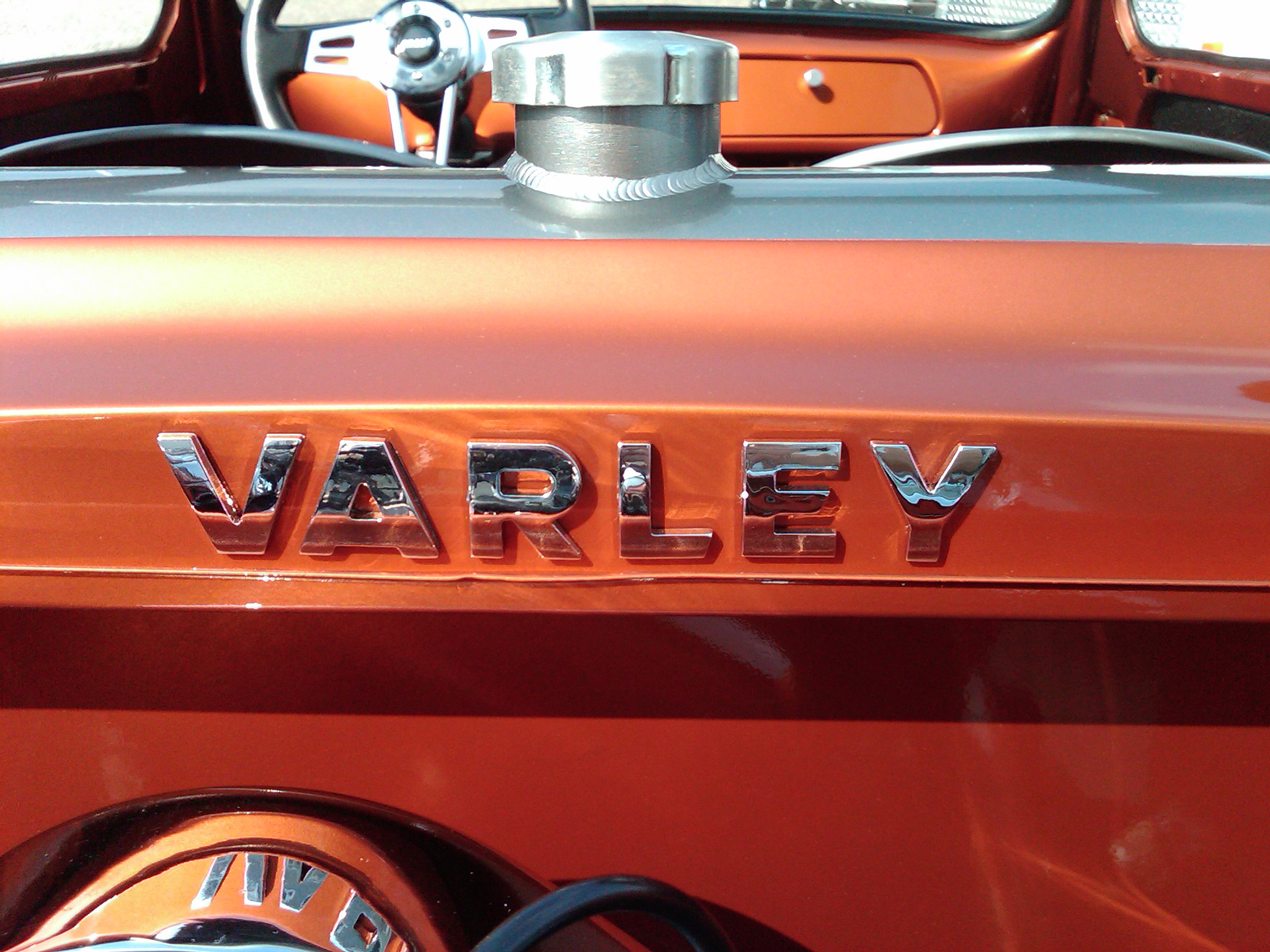

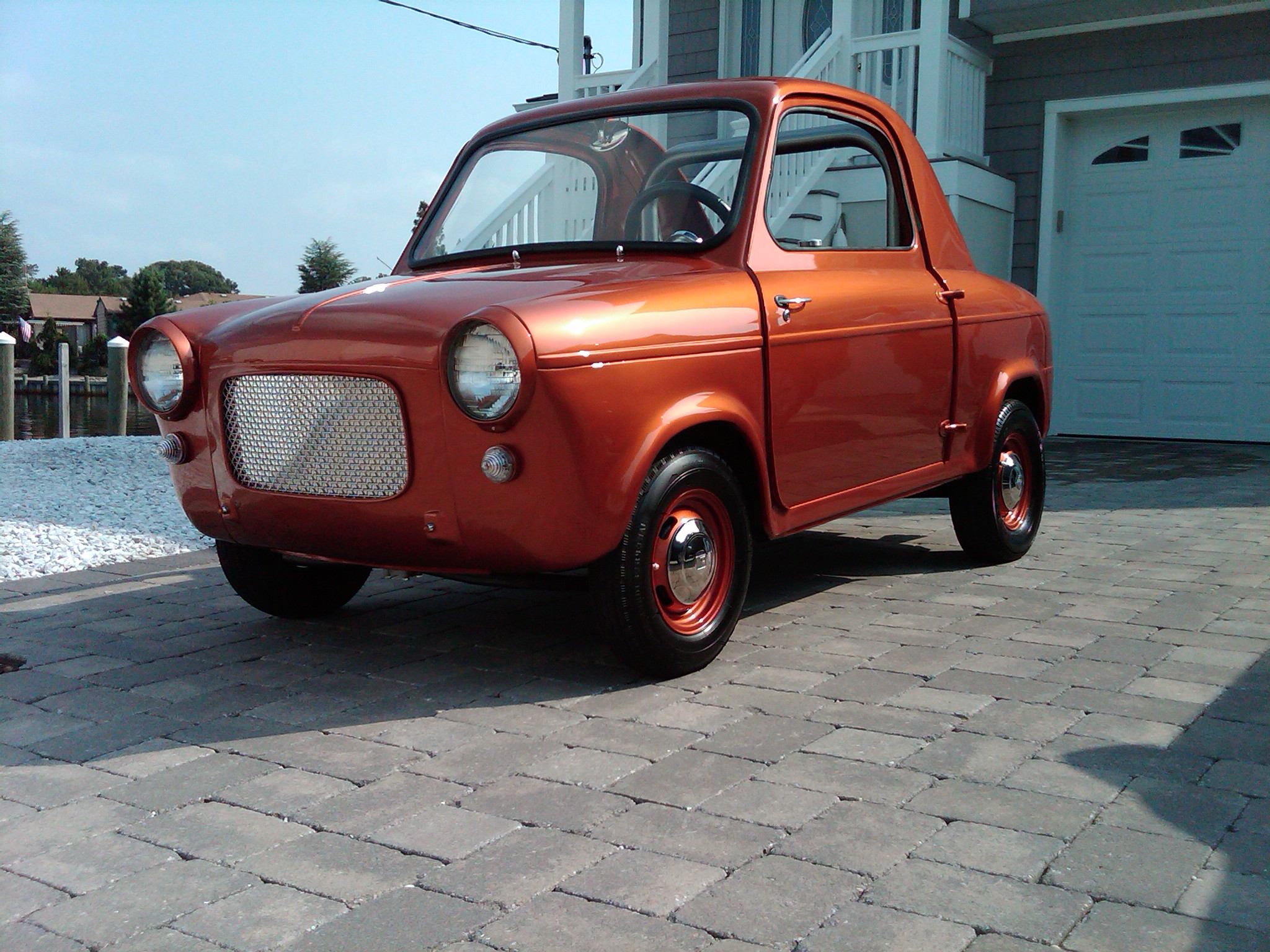

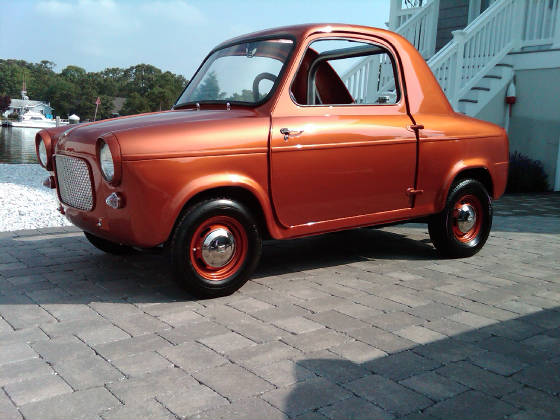

Take a Vespa, add a Harley and it becomes...a Varley..

vespa/8vespa.jpg

vespa/8vespa.jpg

Below you can see how it all started.

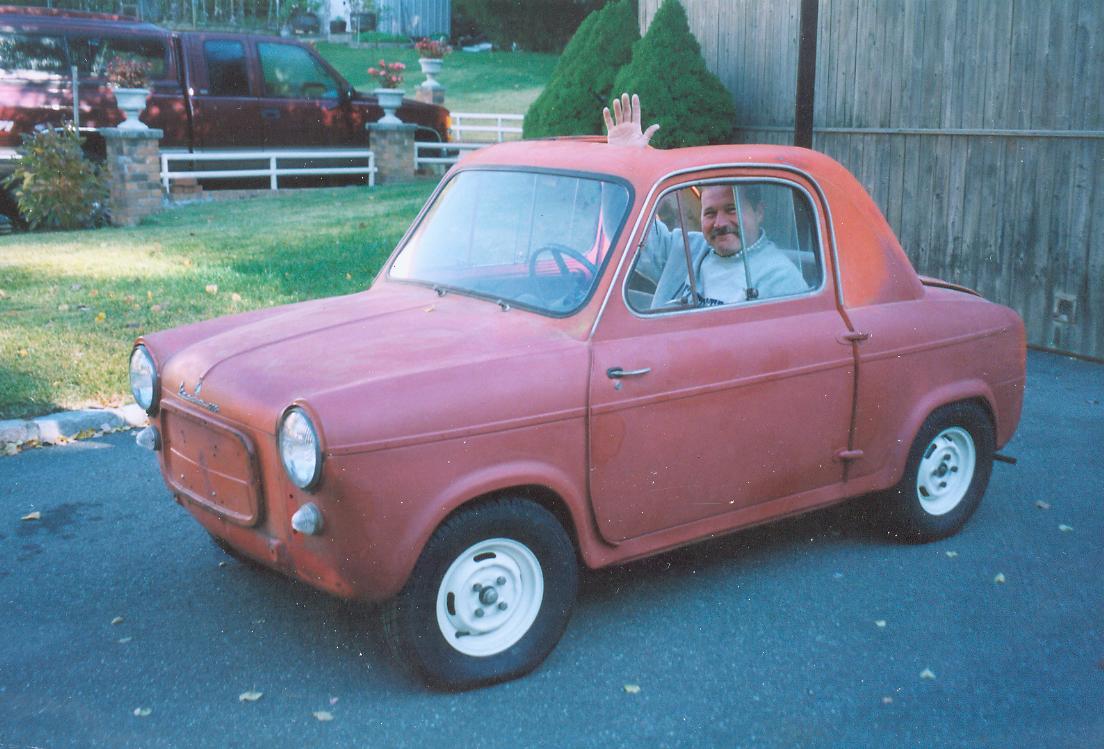

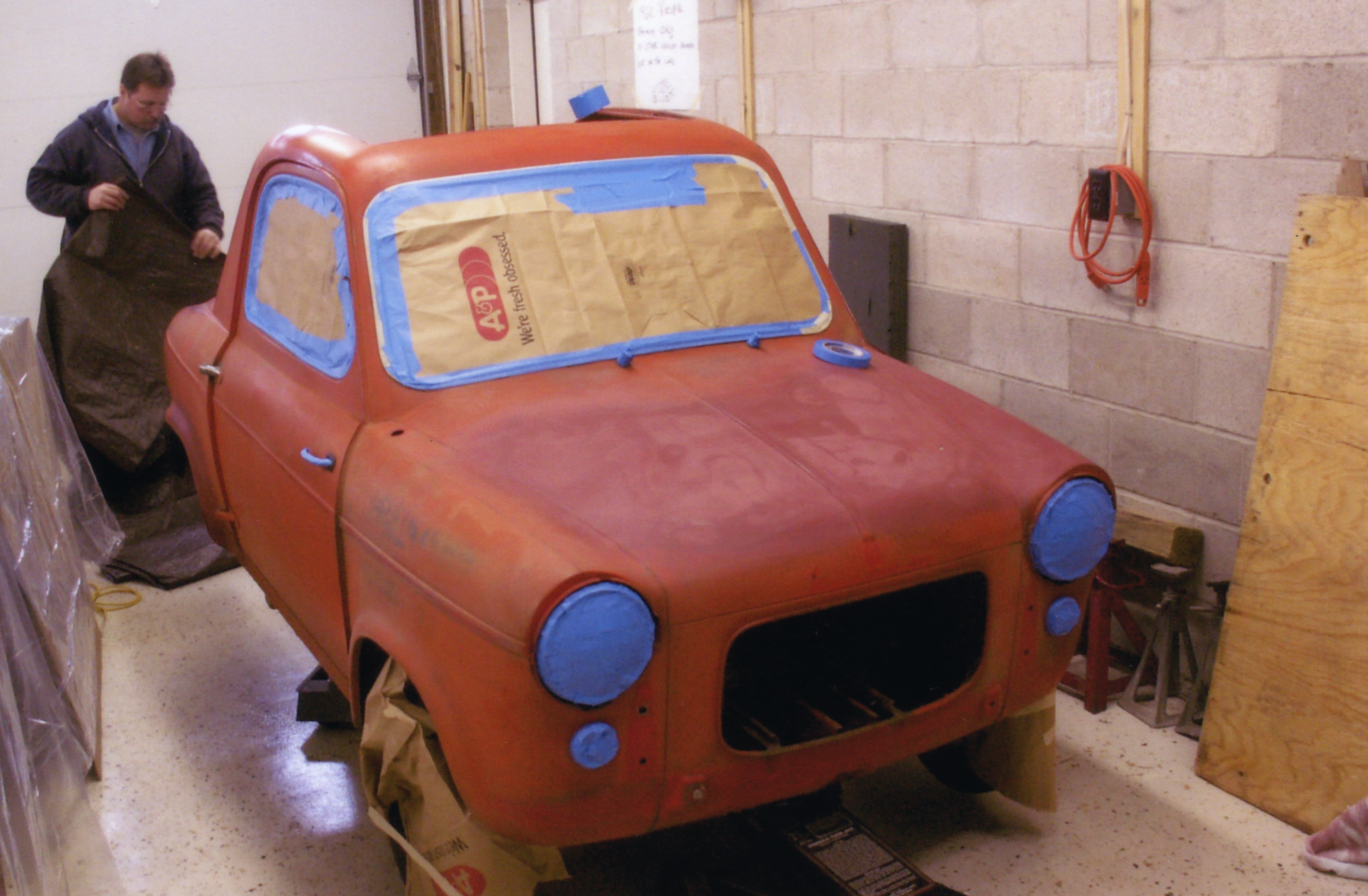

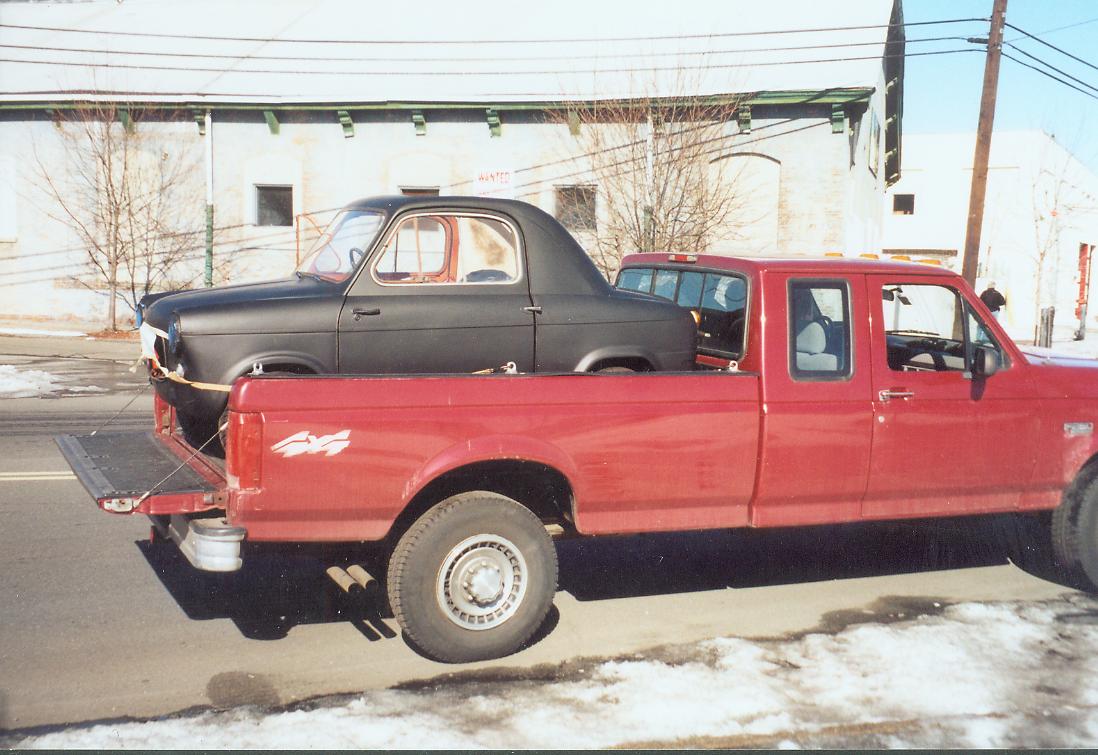

This is the day it came home. We decided it needed a full build.

But, as usual, we did it a little different.

vespa/8vespa.jpg

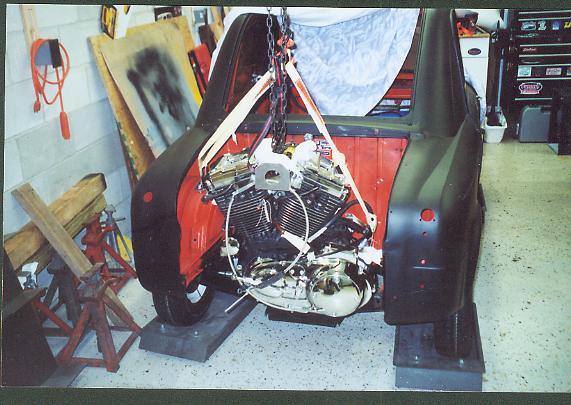

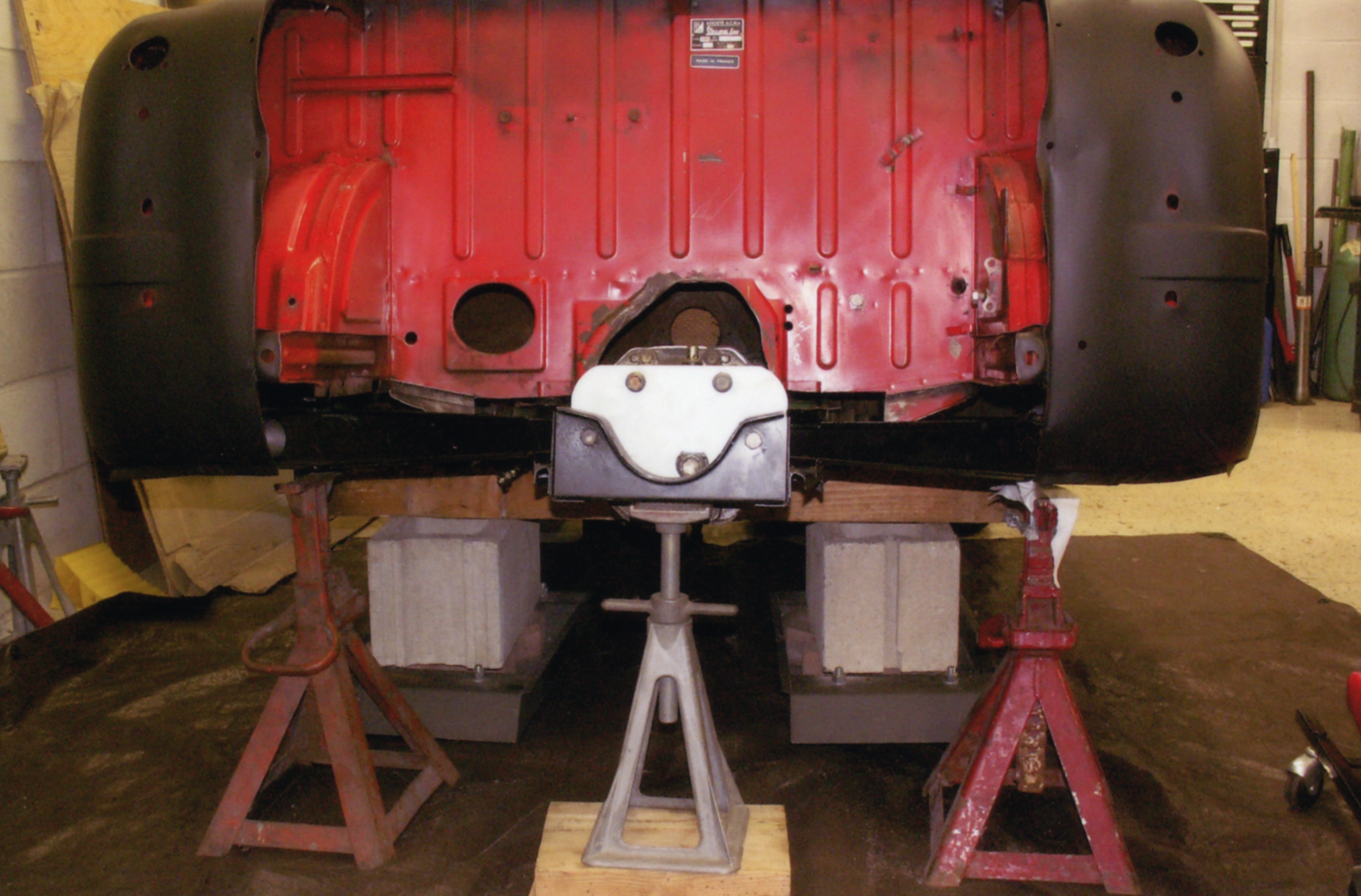

Once we had the engine out, we had to figure out how to mount the Harley Engine.

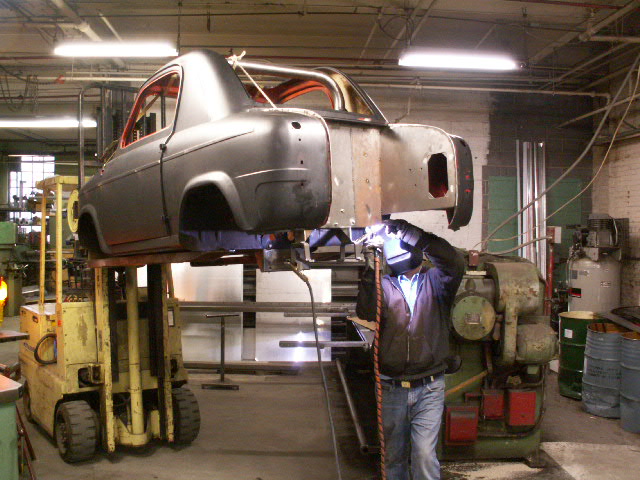

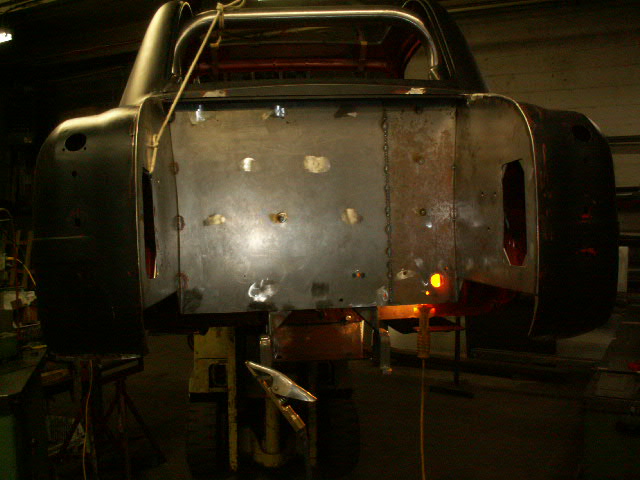

We added new Firewall front and sides to smooth and strengthen that area. (There are also reinforcement brackets behind the panels.) Then we made a "cradle" to support the motor.

vespa/8vespa.jpg

vespa/8vespa.jpg

vespa/vespawelding2.JPG

vespa/vespawelding2.JPG

vespa/vespawelding2.JPG

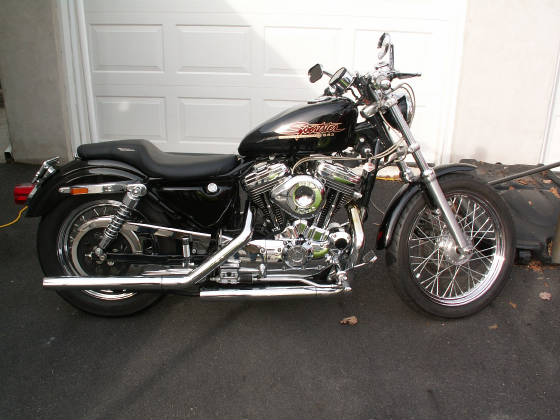

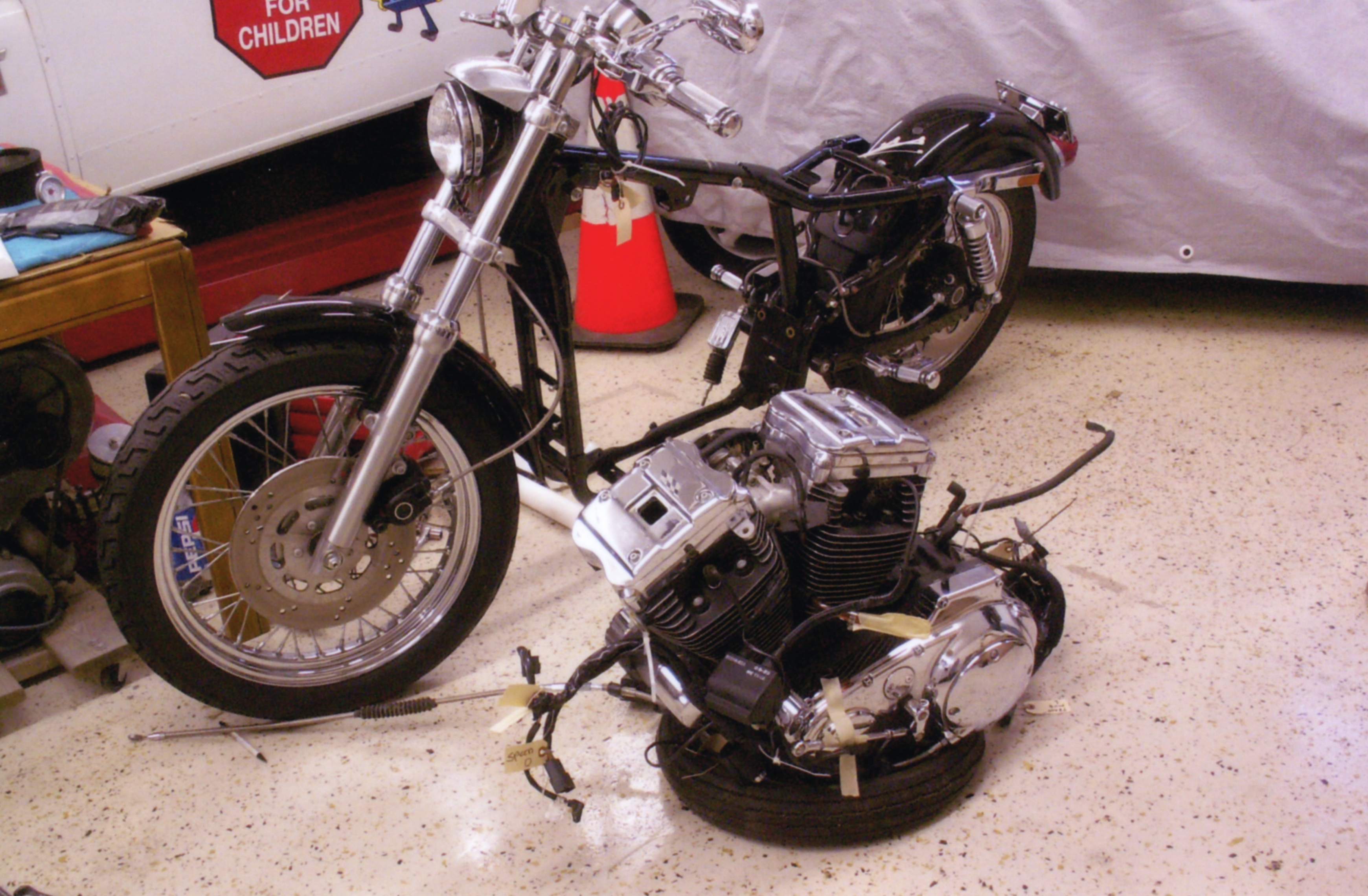

The engine is a chromed out Harley 1200cc. It had 2,000 miles on it.

Don't tell the original owner. It was his pride and joy.

vespa/8vespa.jpg

vespa/8vespa.jpg

vespa/8vespa.jpg

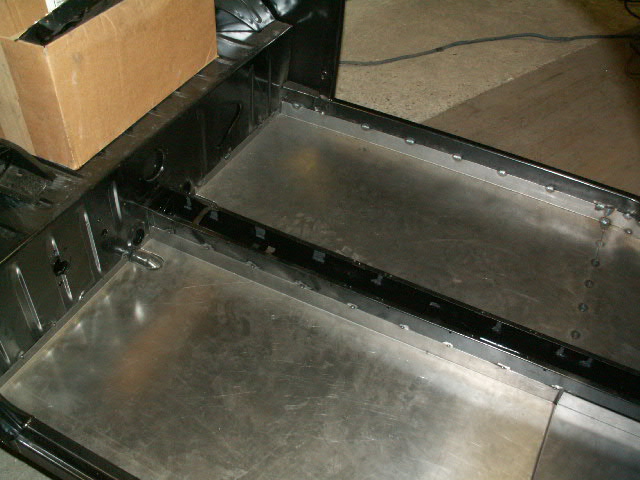

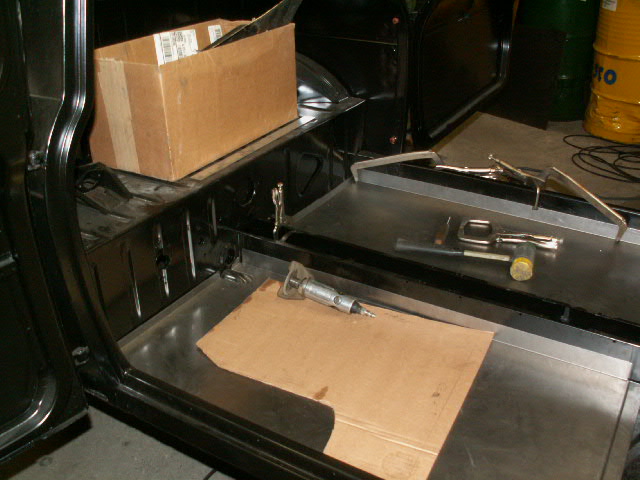

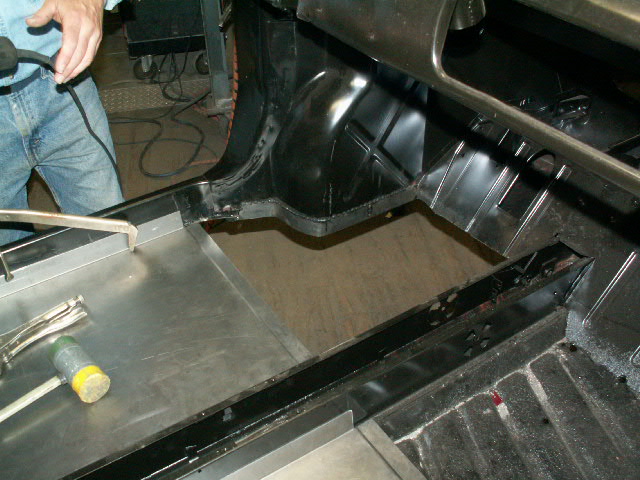

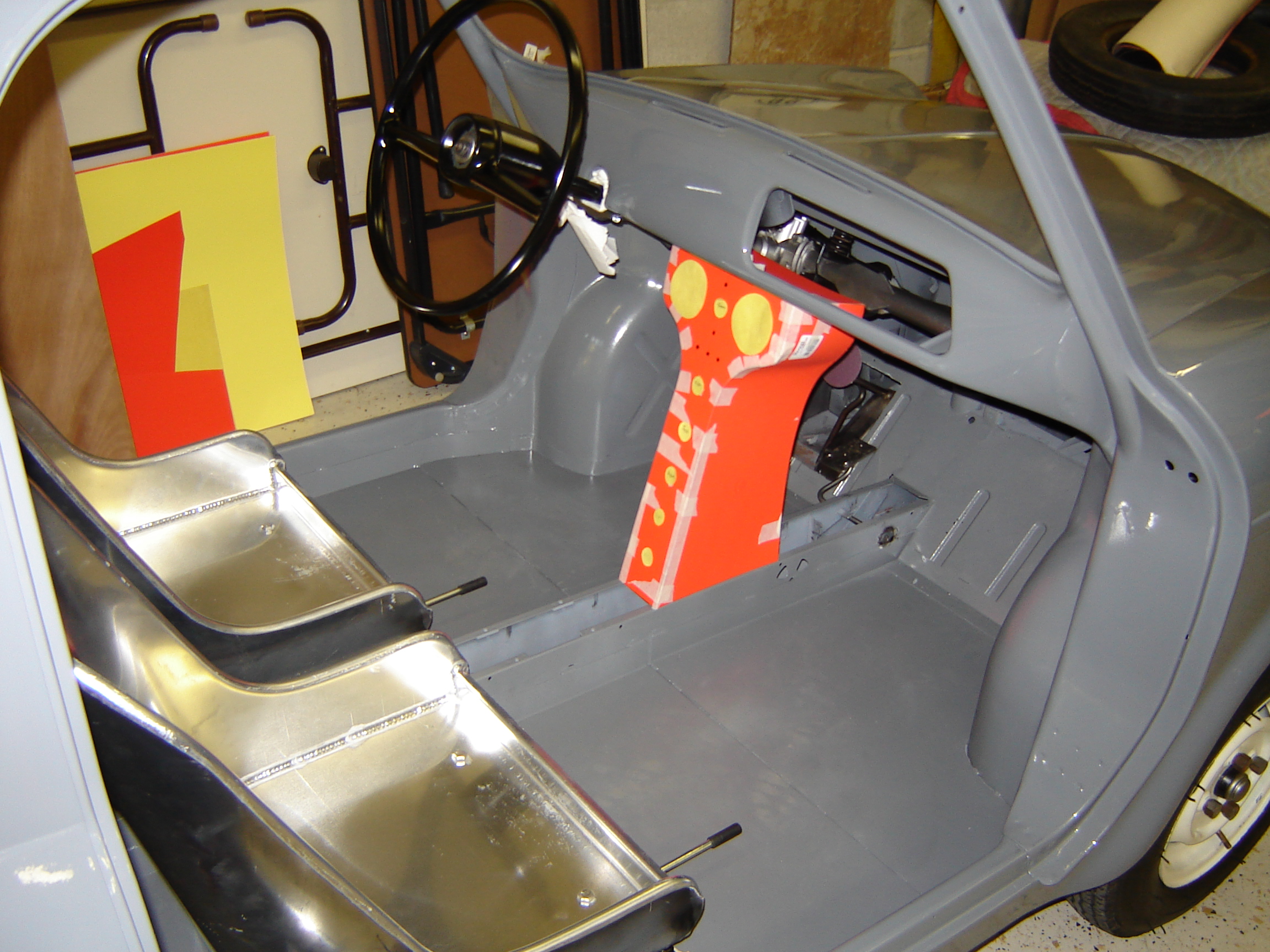

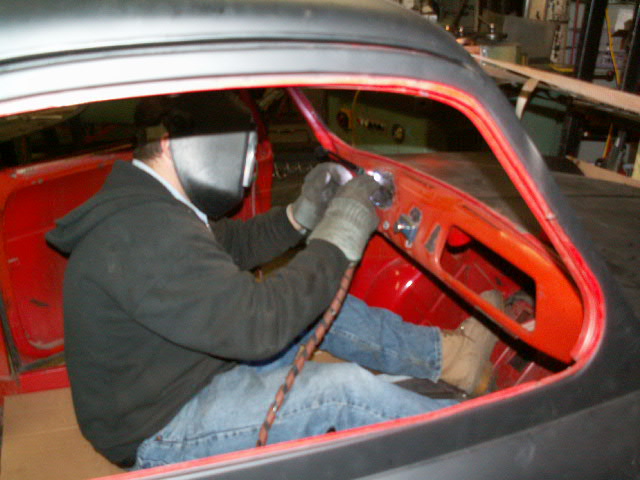

We filled the dash, built a new firewall and replaced all the floors.

vespa/8vespa.jpg

vespa/8vespa.jpg

vespa/8vespa.jpg

vespa/8vespa.jpg

vespa/8vespa.jpg

We also made a glovebox door..

vespa/vespaglovebox.JPG

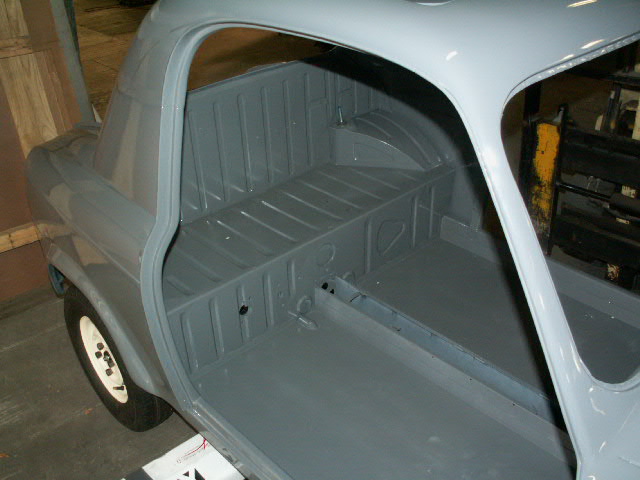

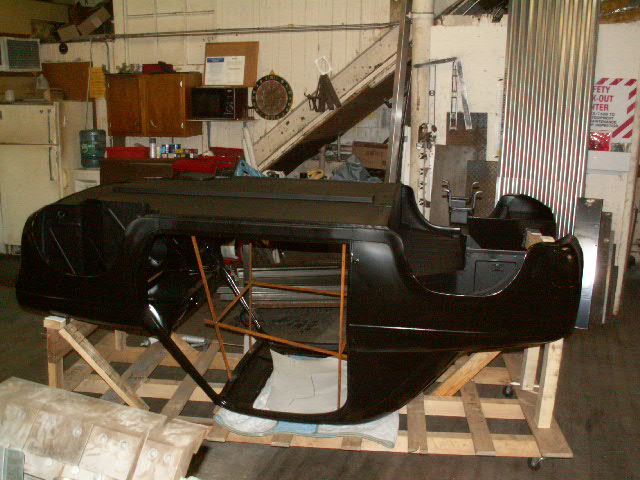

As with our other builds, we took the body to Michigan to be dip stripped and dip primed using PPG E-Coat.

vespa/8vespa.jpg

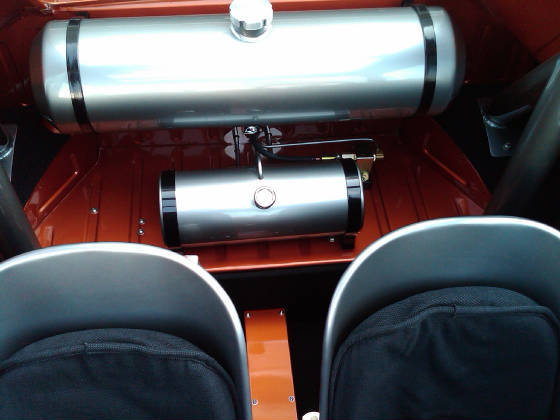

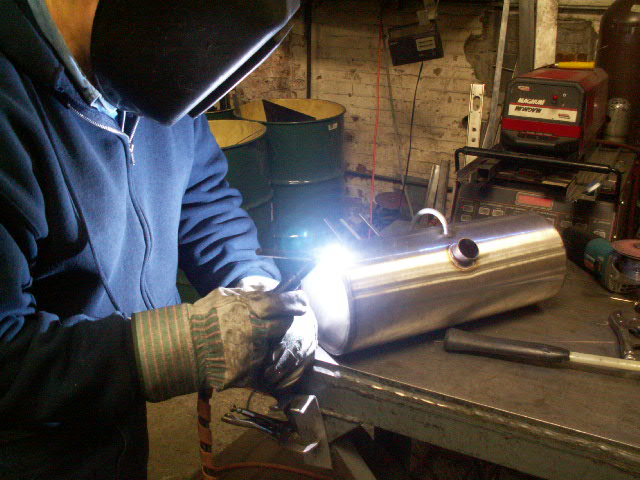

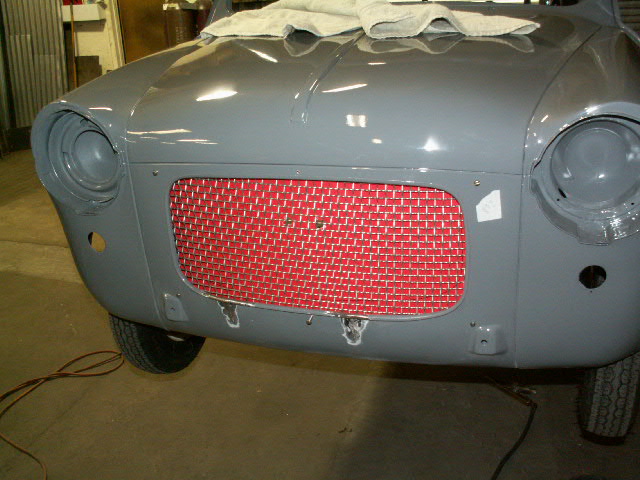

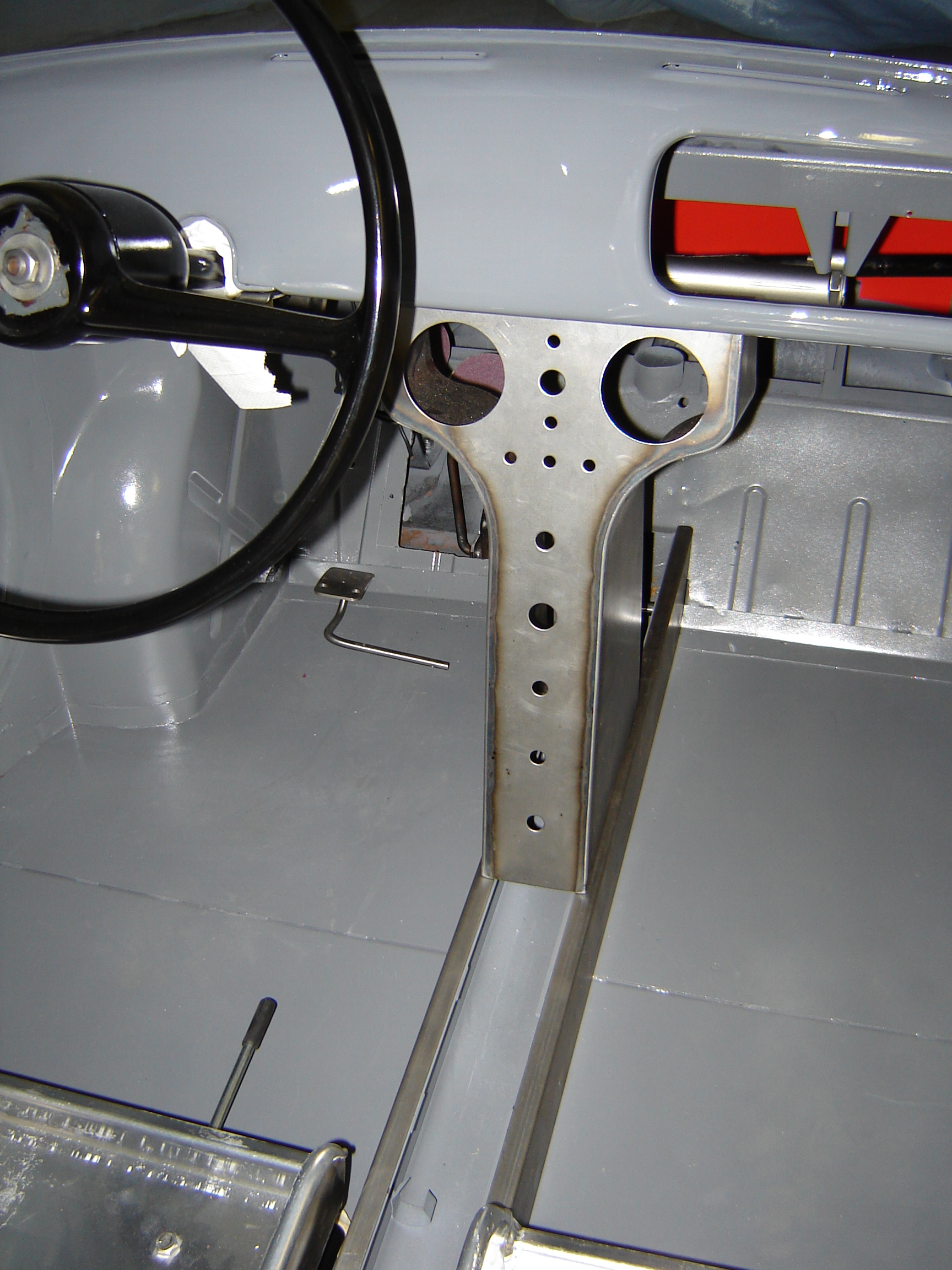

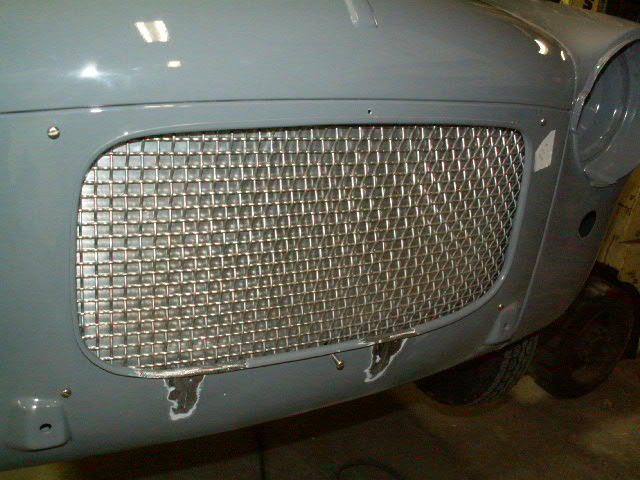

Then we built a new gauge pod, grille and stainless tanks.

vespa/8vespa.jpg

vespa/8vespa.jpg

vespa/8vespa.jpg

vespa/8vespa.jpg

vespa/8vespa.jpg

vespa/8vespa.jpg

vespa/8vespa.jpg

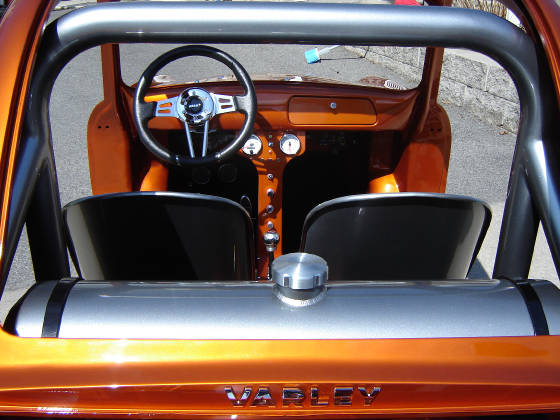

We made the oil tank and roll bar...

vespa/8vespa.jpg

vespa/8vespa.jpg

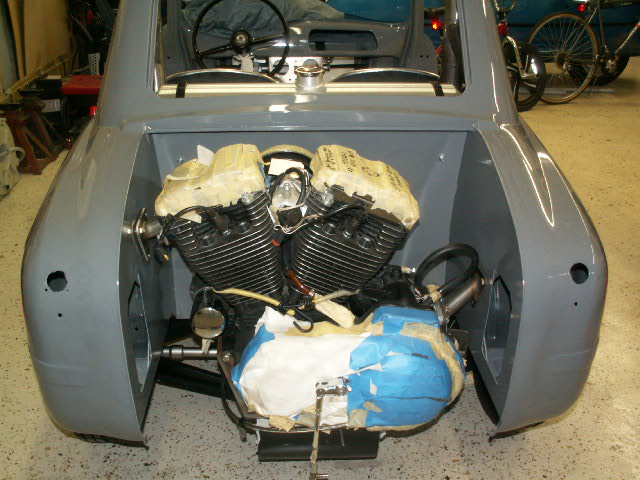

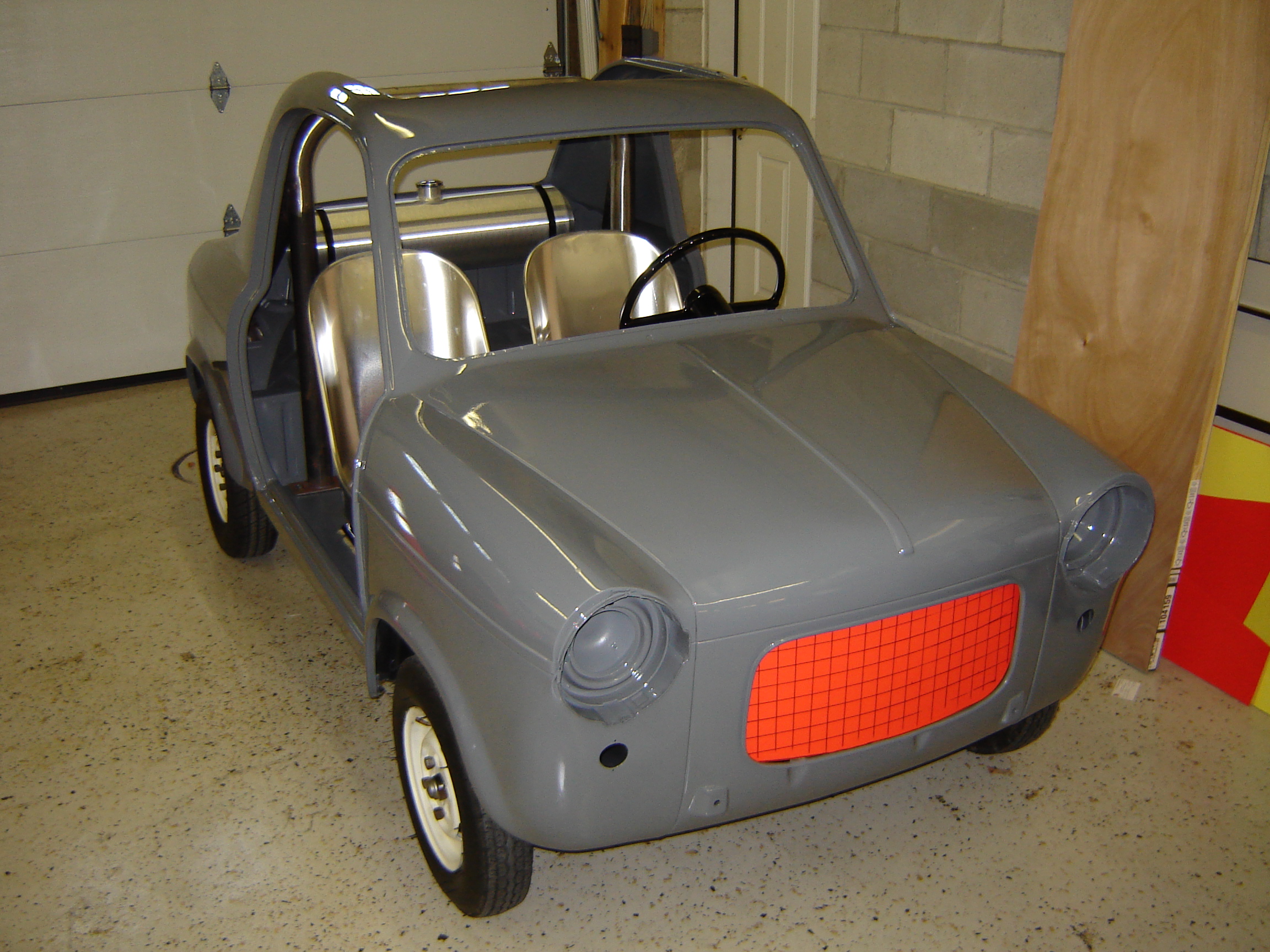

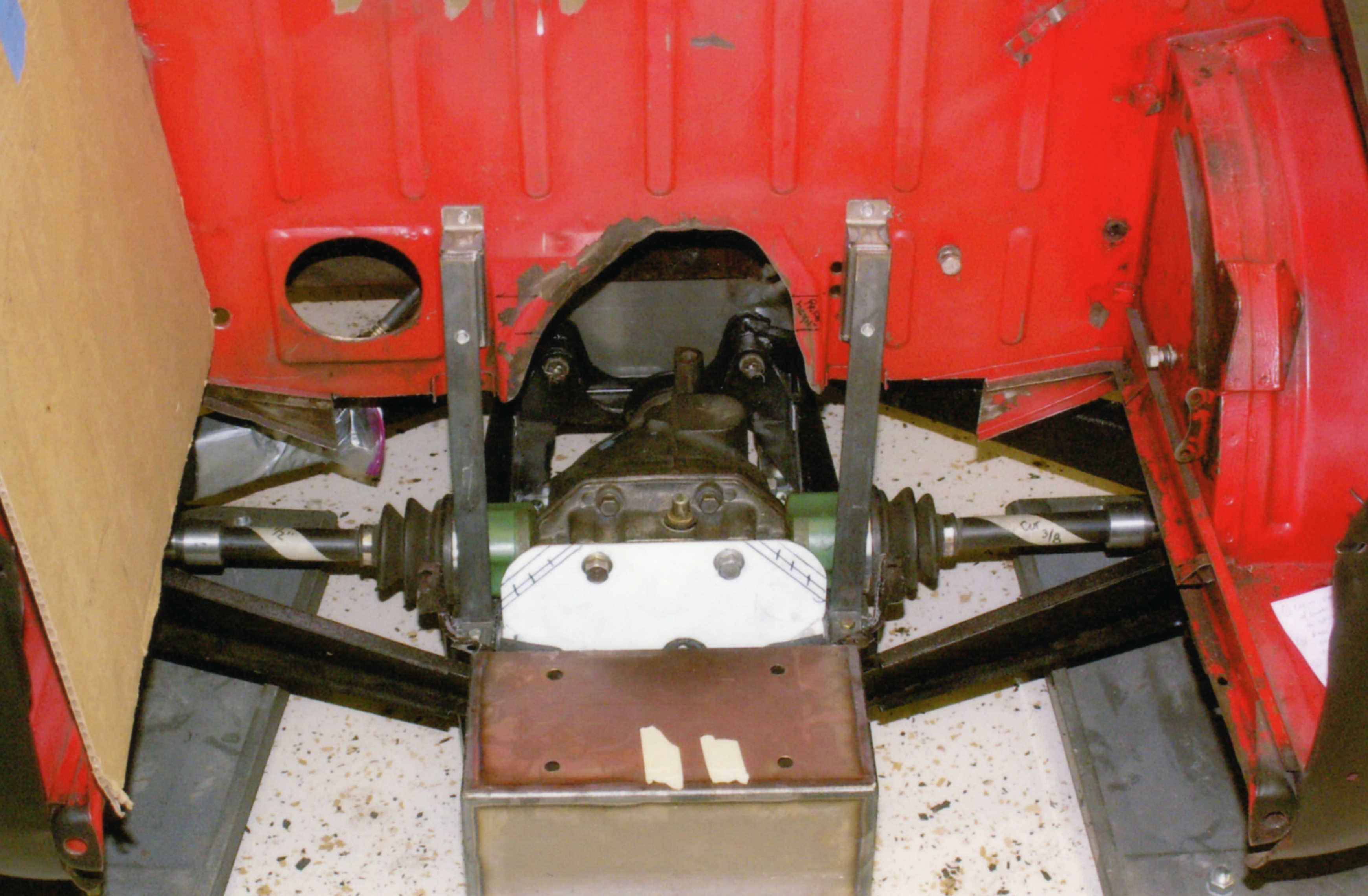

After we made the engine mounts and mocked it all up one last time, it went for paint

vespa/8vespa.jpg

vespa/8vespa.jpg

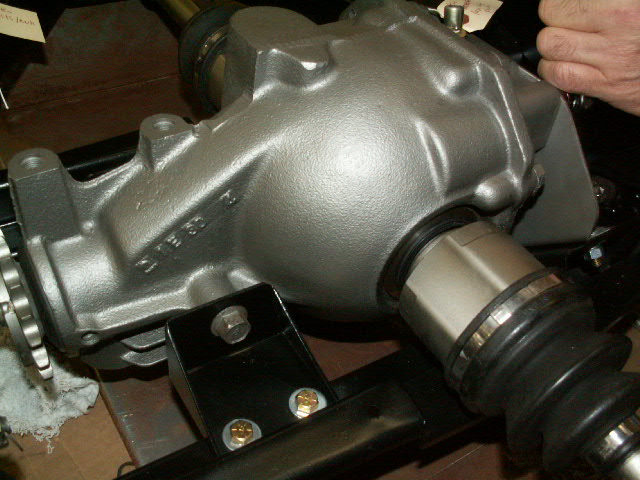

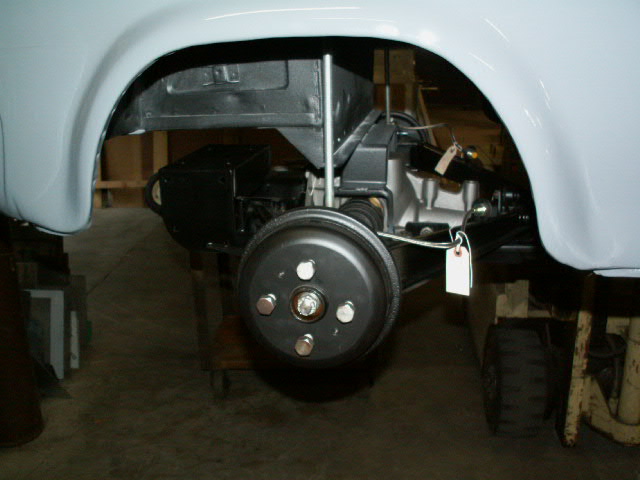

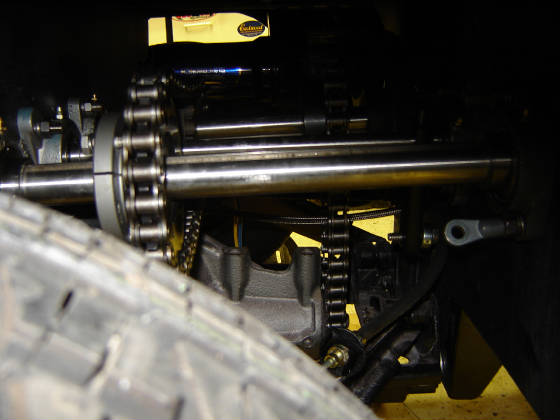

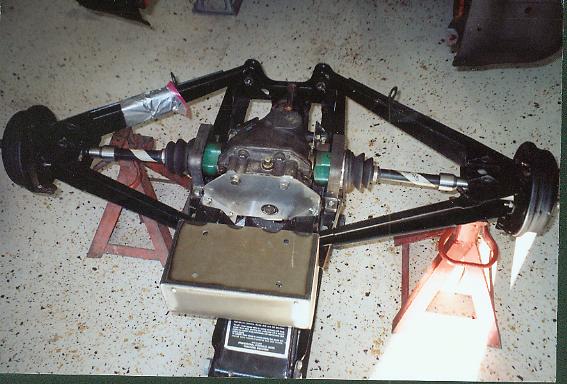

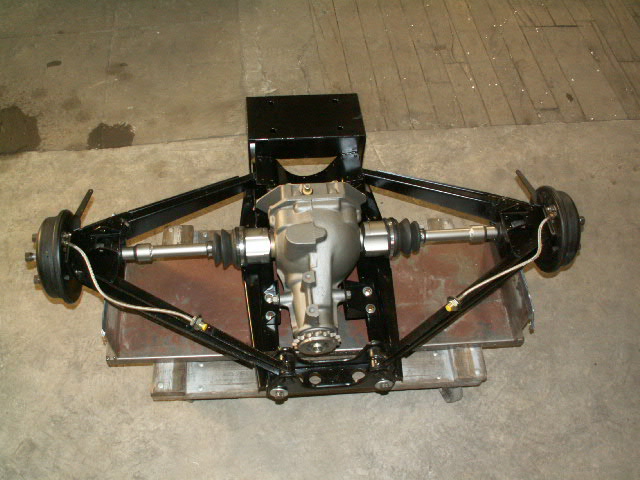

With the engine mounted sideways, we had to use sprockets, jackshafts, halfshafts and a Mitsubishi rear to make it all work. It took quite a bit to get it all figured out, but it runs great!

vespa/vespashafts.JPG

vespa/8vespa.jpg

vespa/8vespa.jpg

vespa/8vespa.jpg

vespa/vespashafts.JPG

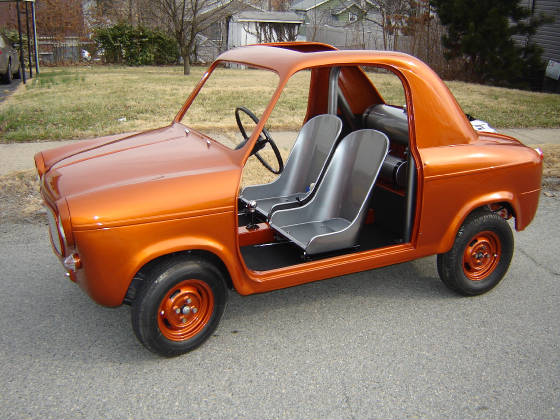

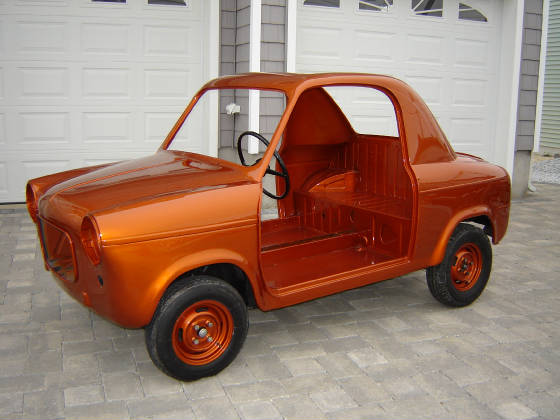

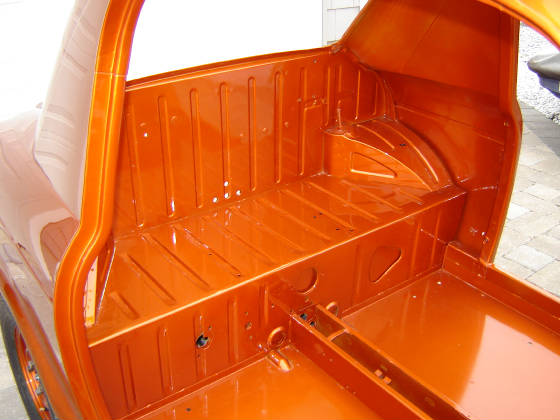

Back from paint, the fun started all over again as we put it back together..

vespa/8vespa.jpg

vespa/vespawiring2.JPG

vespa/8vespa.jpg

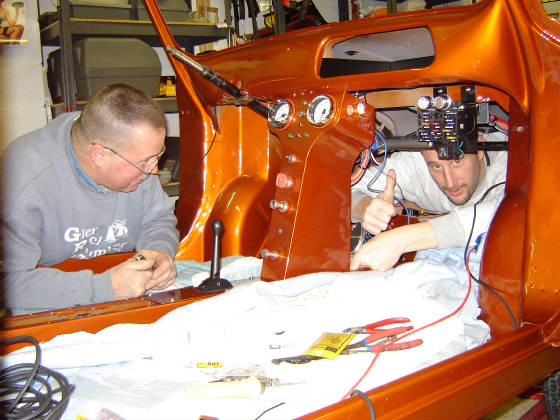

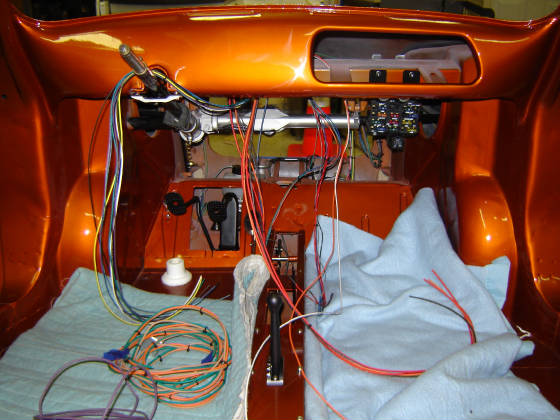

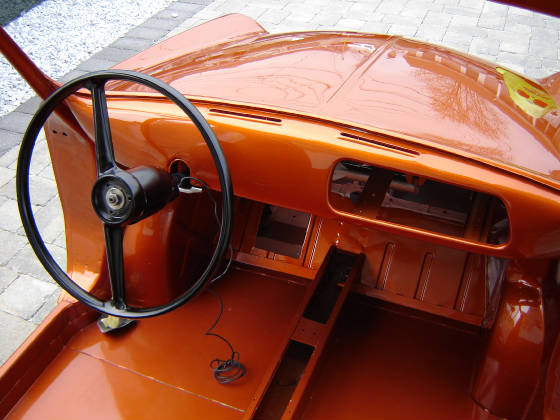

We put the newly fabricated dash in and started the hours upon hours of wiring...

vespa/vespawiring2.JPG

vespa/vespawiring2.JPG

vespa/vespawiring2.JPG

vespa/vespawiring2.JPG

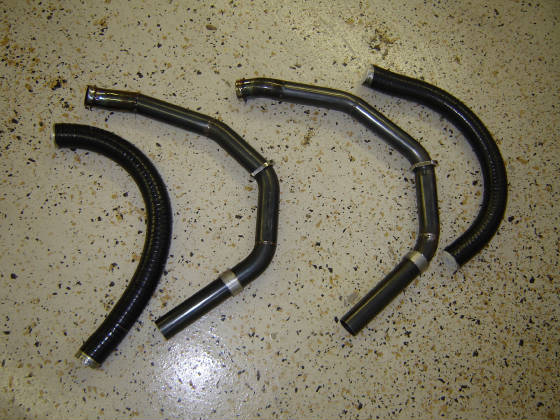

Lastly, we built our own exhaust..

vespa/vespawiring2.JPG
